(Total 12 Products for Power Diode)
Stud recovery diode for Power supplies
STANDARD RECOVERY DIODES YZPST-SM95PF(R)-160 Features ■ High current carrying capability ■ High voltage ratings up to 2000V ■ High surge current capabilities ■ Stud cathode and stud anode version Typical Applications ■ Converters ■ High power drives ■ Power supplies ■ Machine tool controls ■ Medium traction...
High voltage power circuits 20000V diode
YZPST-HV 100-400mA series YZPST-HV-37-20 Product Characteristics 1. High junction temperature :-40℃-150℃ 2. Low forward conduction voltage and small leakage current 3. Avalanche voltagebreakdown protection 4. Reverse recovery time (Trr):70-100nS 5. Excellent properties against HV surge impact 6. Axial leading wires...
High power cycling medium frequency welding diode
HIGH POWER DIODE FOR MEDIUM FREQUENCY WELDING WITHOUT HOUSING ULTRATHIN DEVICE YZPST-53DN04 Features - High current capability - Very low thermal impedance - High power cycling capability ELECTRICAL CHARACTERISTICS AND RATINGS VRRM = Repetitive peak reverse voltage VRSM = Non repetitive peak reverse voltage (2) Notes:...
High power Standard rectifier diode 6000v
Standard Rectifier YZPST-ZP1363A6000V GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER Features: All Diffused Structure . High Surge rating. Soft Reverse Recovery. Rugged Ceramic Hermetic Package. Pressure Assembled Device Typical Applications: Rectifier for Drives Applications. Medium voltage converters. Pulsed power...
Power supply of 50 amp 4KV diode
YZPST-HV HVR glass blunt chipseries YZPST-HV-HVRW4 Product Characteristics 1. High junction temperature:-60℃-175℃ 2. Low forward voltage drop, and small current leakage 3. Avalanche breakdown protection 4. Reverse recovery time (Trr) less than 50nS 5. Excellent properties against HV surge impact 6. Axial leading wires...
High power 400A schottky diode module
Schottky Rectifier ,400A YZPST-400DK100 schottky diode module FEATURES 175℃ Tj operation Centertapmodule Lo forward voltage drop High frequency operation

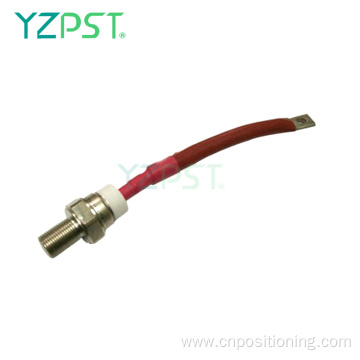

High Power Fast Recovery Diode
High Power FAST Recovery Diode FAST RECOVERY DIODES, Stud Version Features: High power FAST recovery diode series, 1.0 to 2.0 μs recovery time, High voltage ratings up to 5000V, High current capability, Optimized turn on and turn off characteristics, Low forward recovery, Fast and soft reverse recover,
400V High power drives stud Verstion diode
400V High power drives stud Verstion diode YZPST-SM40HF40 STANDARD RECOVERY DIODES Features: High current carrying capability High voltage ratings up to 2000V High surge current capabilities Stud cathode and stud anode version Typical Applications Converters High power drives Power supplies
High power diode for medium frequency welding
HIGH POWER DIODE FOR MEDIUM FREQUENCY WELDING WITHOUT HOUSING ULTRATHIN DEVICE YZPST-53DN04 Features - High current capability - Very low thermal impedance - High power cycling capability ELECTRICAL CHARACTERISTICS AND RATINGS VRRM = Repetitive peak reverse voltage VRSM = Non repetitive peak reverse voltage (2) Notes:...
1200V stud recovery diode symbol for Power supplies
Standard Recovery Diode YZPST-SM70HF120 STANDARD RECOVERY DIODES metal diode is also called a metal semiconductor diode because a metal is in contact with an n-type or p-type semiconductor to form a single pole tube with unidirectional conductivity. STANDARD RECOVERY DIODES Stud Version Features ■

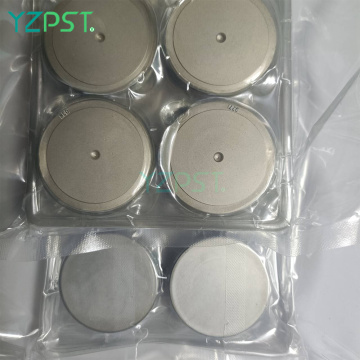

High power High-density diode 7500A GMZP7500A600V
YZPST-GMZP7500A600V GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER
Features:
All Diffused Structure . High Surge rating
Soft Reverse Recovery
Rugged Ceramic Hermetic Package
Pressure Assembled Device
Typical Applications:
. Rectifier for Drives Applications . Medium voltage converters
. Pulsed power applications ....
Stud recovery diode 1200V for High power drives
STANDARD RECOVERY DIODES YZPST-SM95PF(R)-120 Features ■ High current carrying capability ■ High voltage ratings up to 2000V ■ High surge current capabilities ■ Stud cathode and stud anode version Typical Applications ■ Converters ■ High power drives ■ Power supplies ■ Machine tool controls ■ Medium traction...
