Home > Products > Electronic Components Resistor > Thick Film Chip Resistors > Thick Film Chip Resistor SMD Resistor





View the big picture

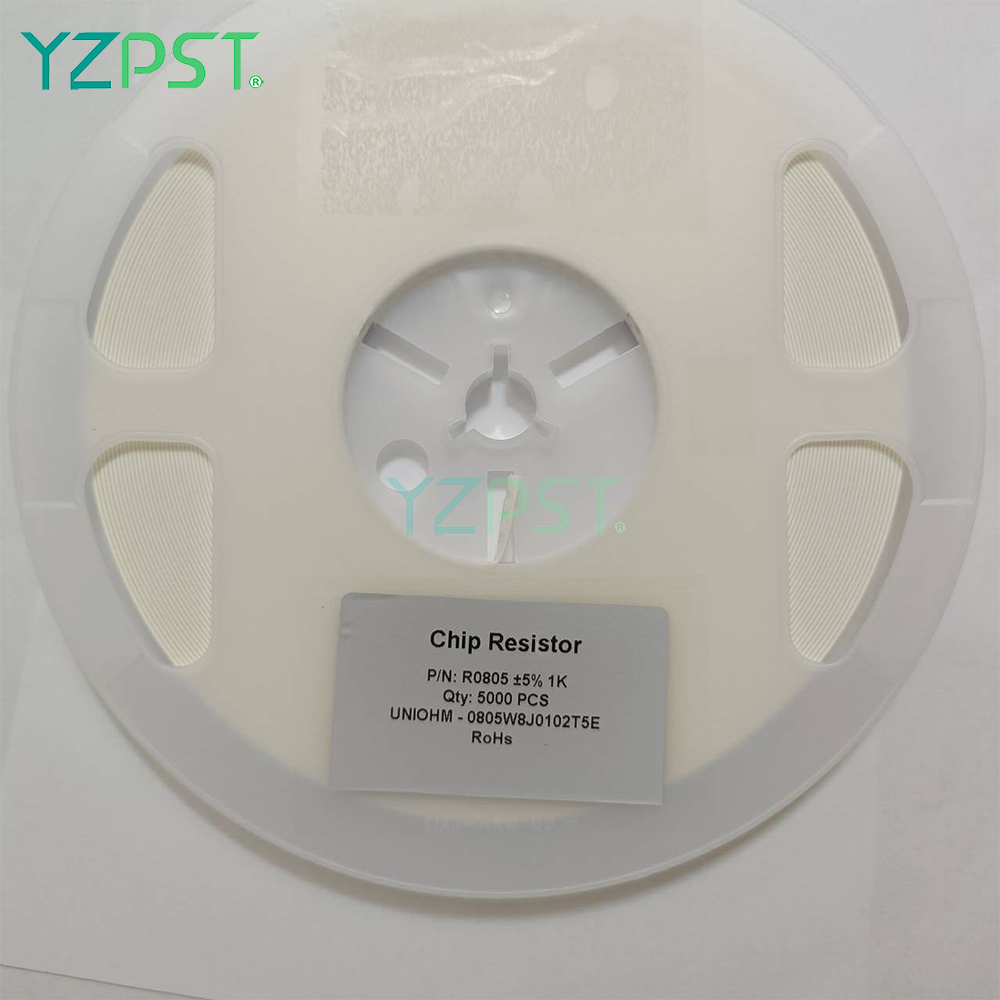

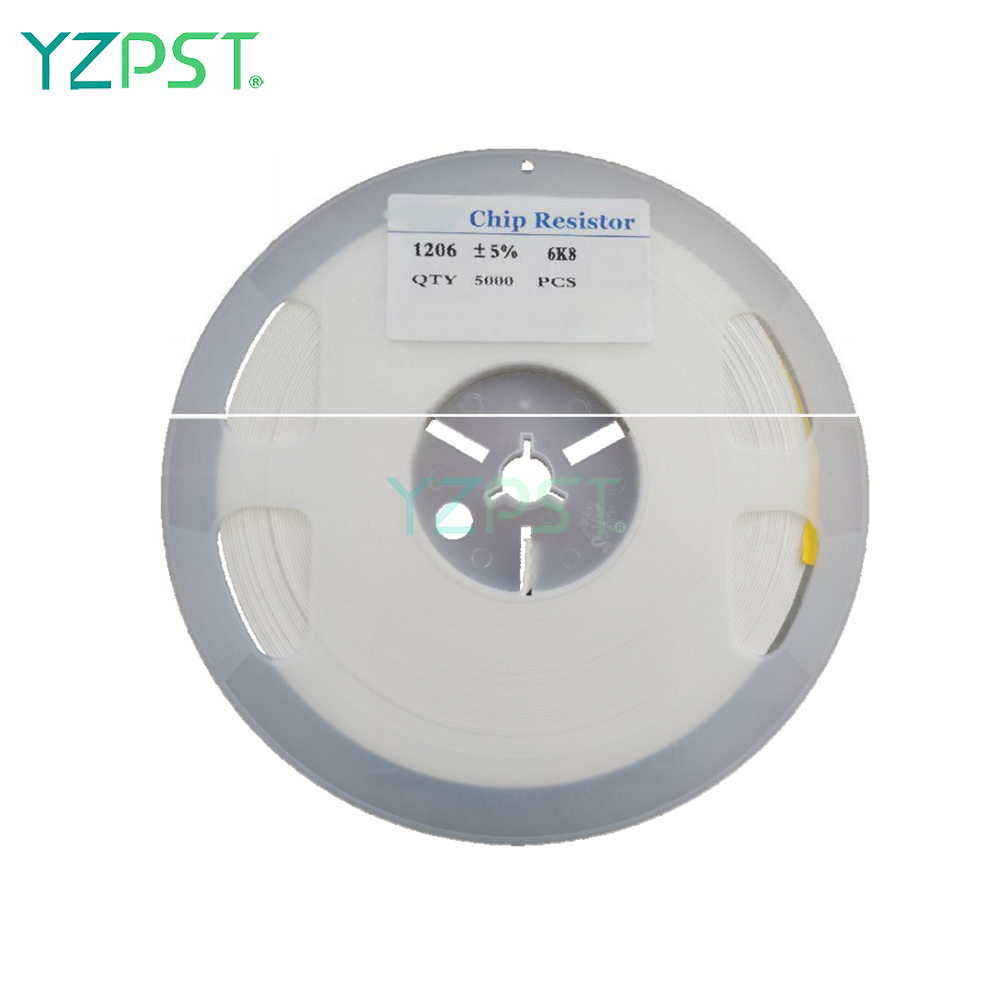

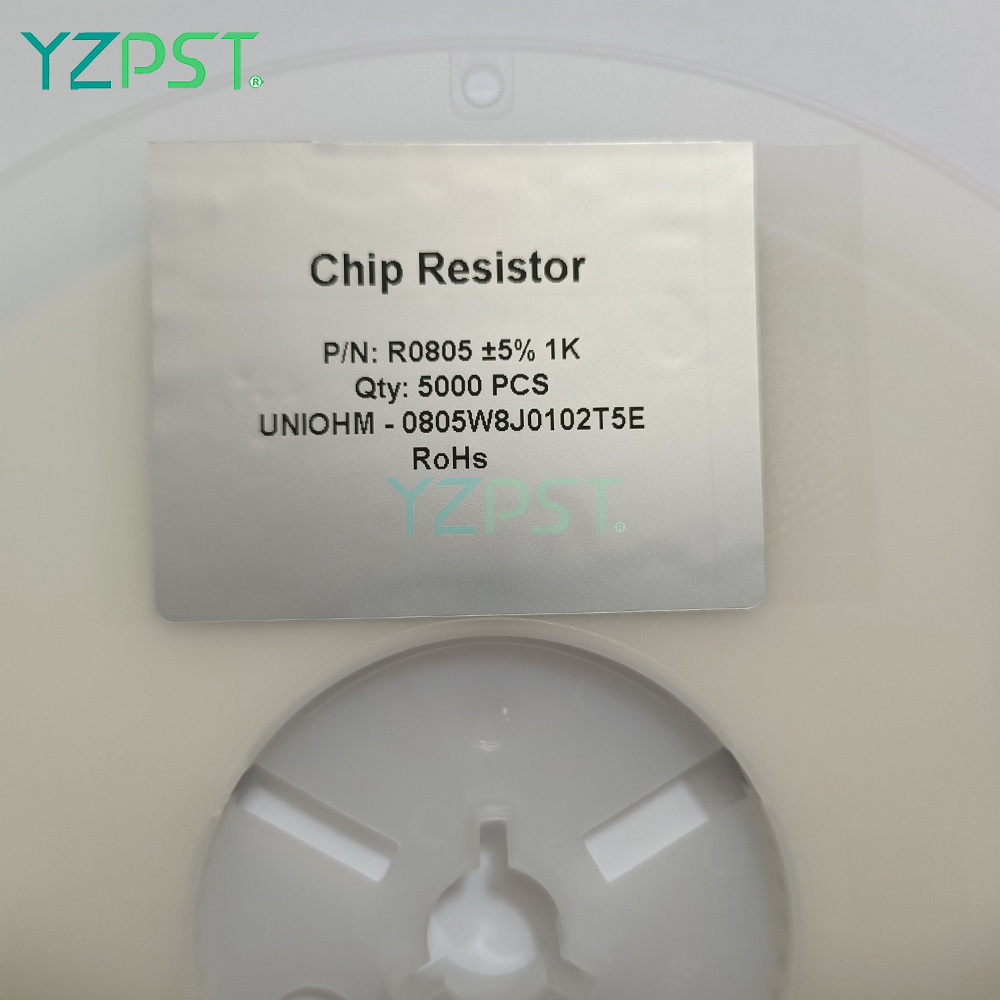

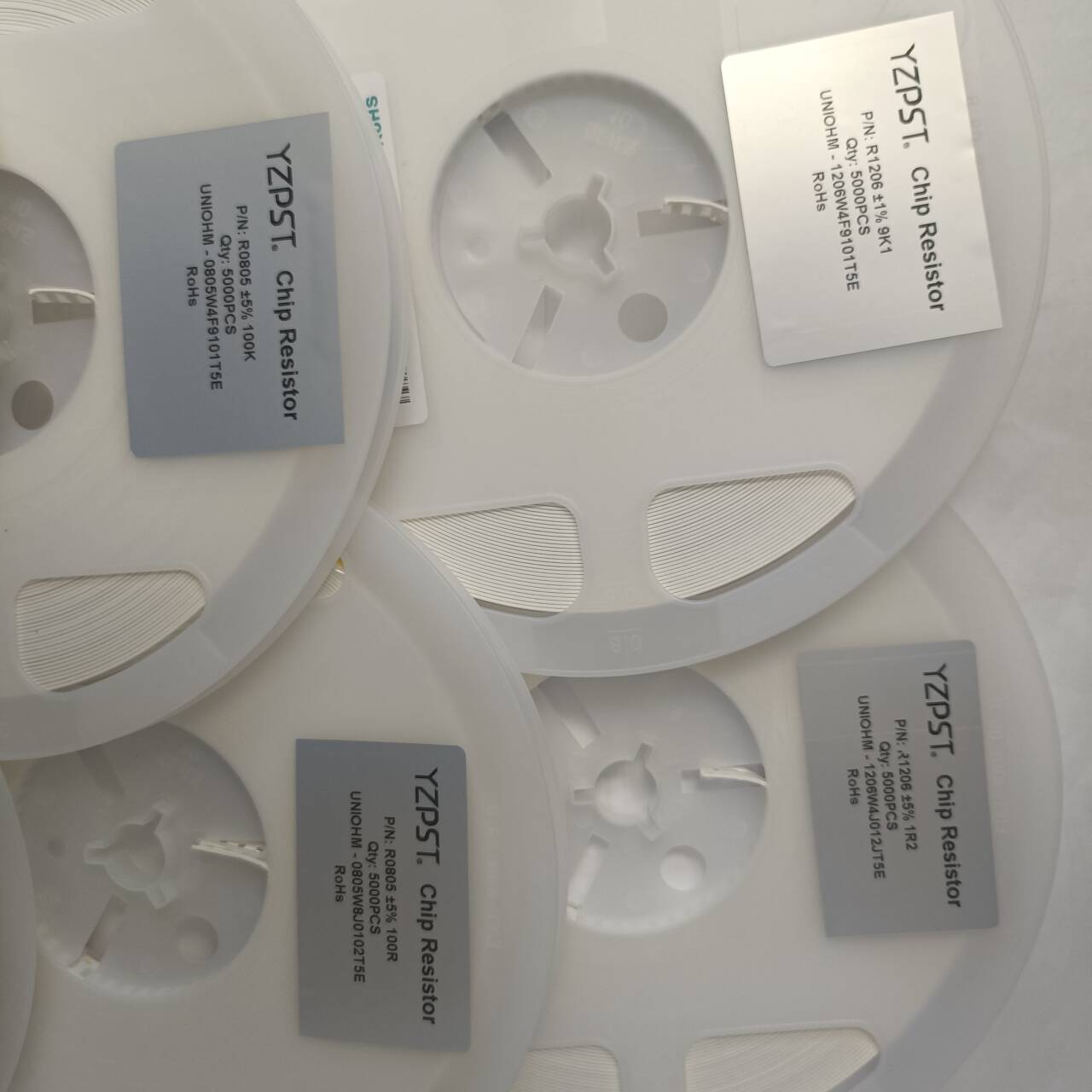

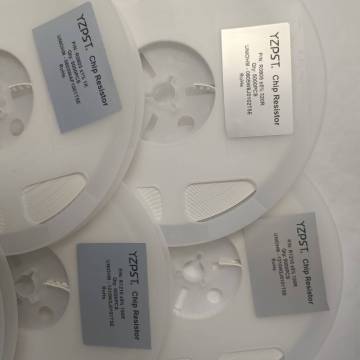

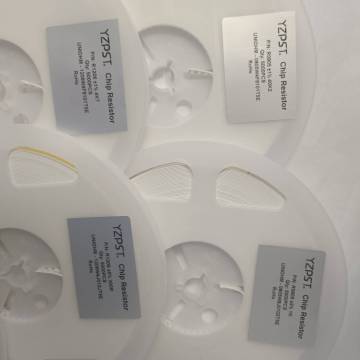

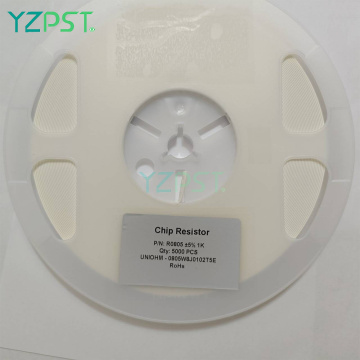

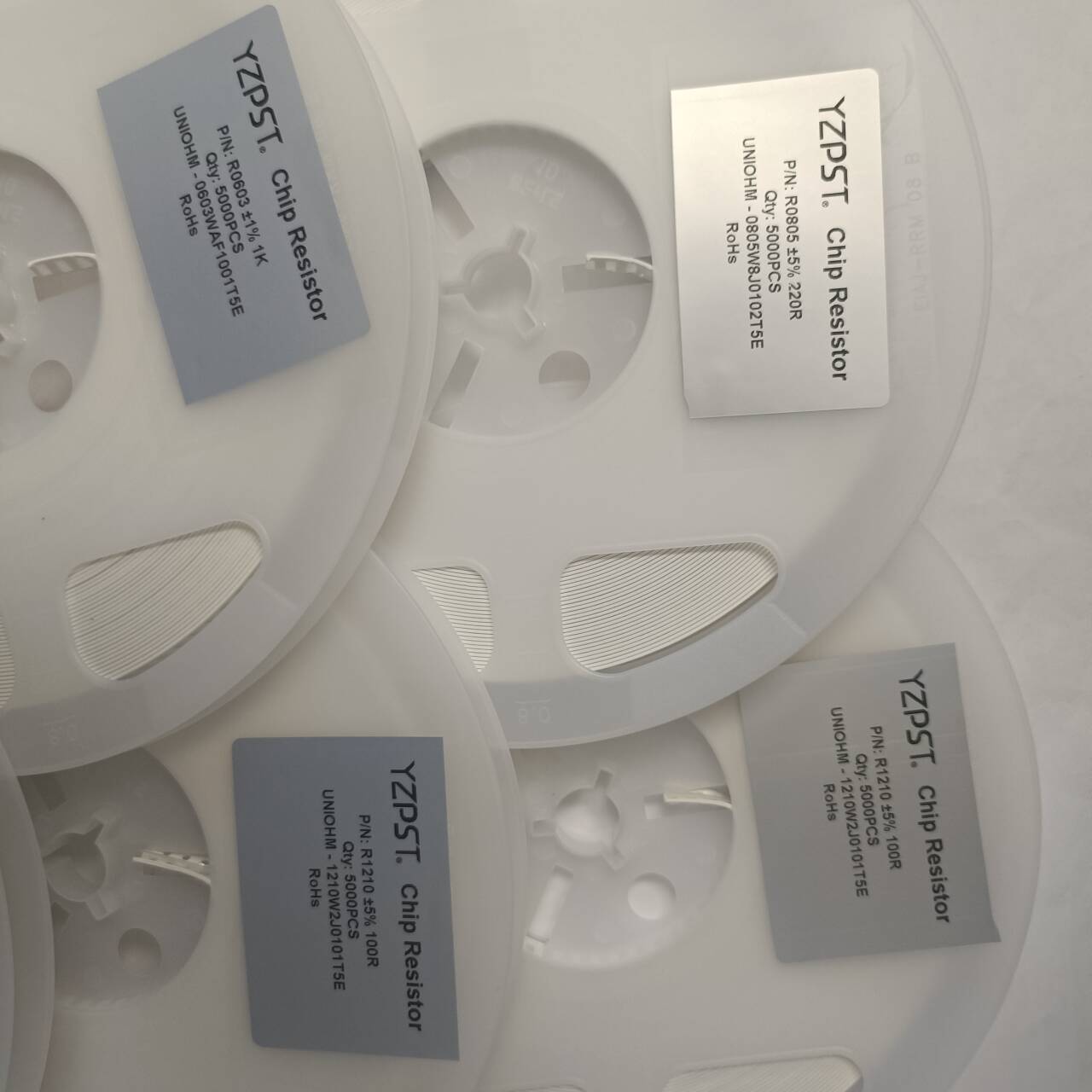

Thick Film Chip Resistor SMD Resistor

Name: Chip Resistor
Uploaded: 2025-07-30T07:09:14+08:00
Description: Thick Film Chip Resistor SMD Resistor This acknowledgement applies to the lead-free and halogen-free SCR series thick

Unit Price:

USD 0.0005 - 0.0008 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CFR,CIF

Download:

Contact Now

 Chat Now
Share to:

Basic Info

Model No.: YZPST-R0805±5%1K

Brand: YZPST

Origin: CHINA

Place Of Origin: China

0201: Maximum rated voltage：25V

0402: Maximum rated voltage：50V

0603: Maximum rated voltage：75V

0805: Maximum rated voltage：150V

1206: Maximum rated voltage：200V

1210: Maximum rated voltage：200V

2010: Maximum rated voltage：200V

2512: Maximum rated voltage：200V

Additional Info

Packaging: 1. Anti-electrostatic packaging 2. Carton box 3. braid

Productivity: 1000000000

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 1000000000

Port: SHANGHAI

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CFR,CIF

Product Description

Thick Film Chip Resistor SMD Resistor

This acknowledgement applies to the lead-free and halogen-free SCR series Thick Film Chip Resistors produced by our company.

Our company's lead-free products refer to end electrodes that comply with RoHS requirements and are lead-free, while lead present in the resistance layer glass material is compliant

Comply with the lead exclusion clause of RoHS.

This product belongs to the universal series.

type	Maximum rated voltage	Maximum overload voltage	T.C.R (ppm/℃)	Resistance range		JUMPER (0Ω)	Temperature range for use
				F(±1%)/D(±0.5%) E-24、E-96	J(±5%) E-24
0201	25V	50V	±400	1Ω≦R＜9.1Ω	1Ω≦R＜9.1Ω	50mΩ MAX.	-55℃ ~ +125℃
			±200	10 Ω≦R≦10MΩ	10 Ω≦R≦10MΩ
0402	50V	100V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.	-55℃ ~ +155℃
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
0603	75V	150V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
0805	150V	300V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
1206	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
1210	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.	-55℃ ~ +155℃
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
2010	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
2512	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ

Structural diagram
